Description
xInstallation & adjustment
Continuously adjustable drop height: The drop can be continuously adjusted from 0 up to the maximum drop height, and the selected extension position can be saved. The drop does not need to be fully extended. The tension system ensures even tension and a flat projection surface. If required, the tension can be readjusted in one direction to suit the selected extension height. This allows the desired drop height to be freely selected without compromising the flatness of the projection surface.
HiViGrey Cinema 5D – ALR High Contrast (Gain 1.1) for bright rooms & true HDR experience
The grey high-contrast basis of the 5D material provides:
- visibly deeper black tones and higher contrast dynamics
- richer, more intense colors – ideal for HDR content
- significantly reduced washout in ambient light
- high image brightness with consistently stable homogeneity (Gain 1.1)
- 3D Compatible: Suitable for active 3D projection with compatible projectors and shutter glasses.
Compared to classic white or simple grey screens, the HiViGrey Cinema 5D particularly shows its strength in brighter environments: details are retained, contrasts appear clearly defined, and the image gains significantly in depth and brilliance.
The result: A powerful ALR screen with Gain 1.1 for all who do not want to compromise on high brightness, strong contrasts and brilliant HDR playback, even in the living room.

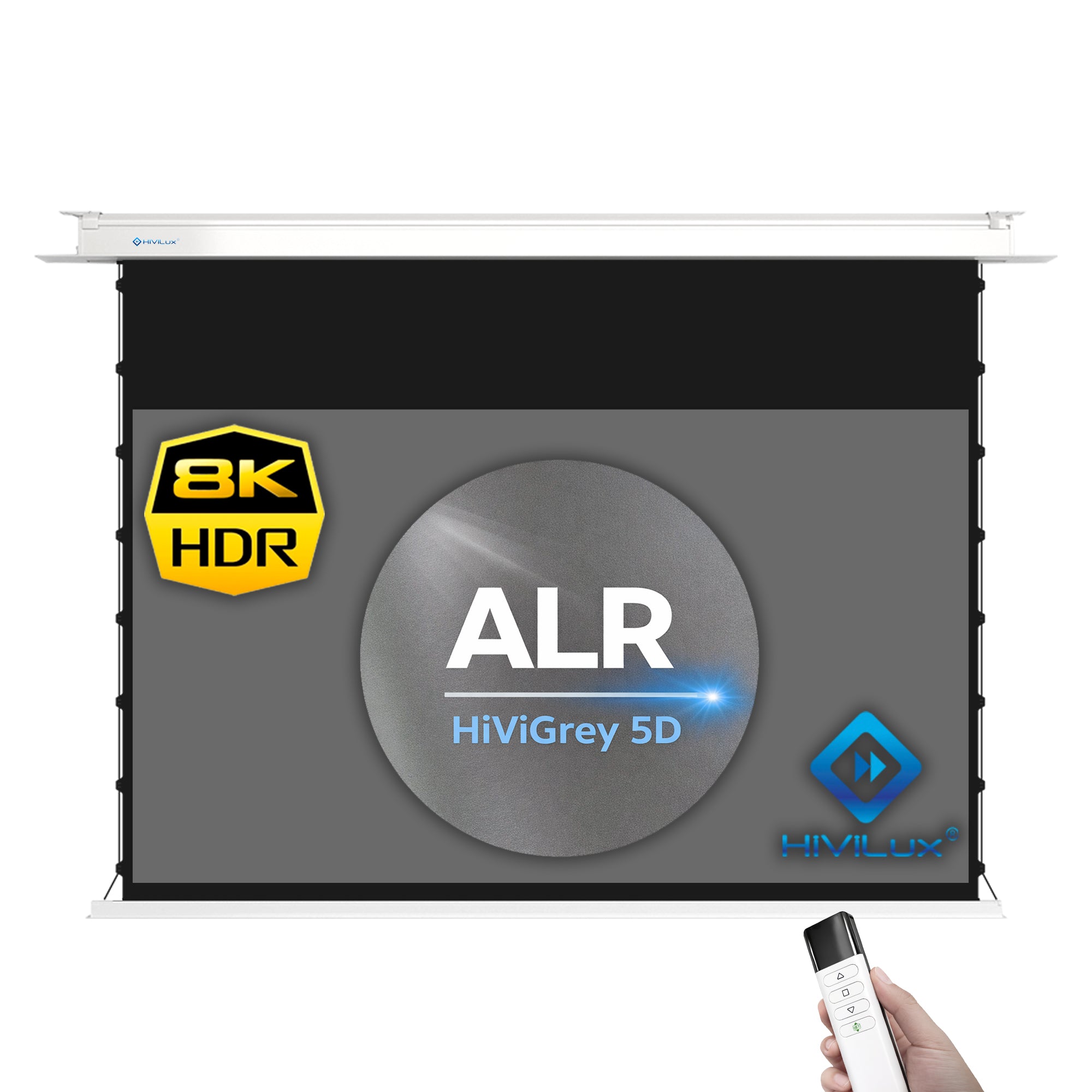

Ceiling Recess TID Series – invisible integration with Tension System
Technical features of the housing:
- full ceiling recess – almost invisible when retracted
- low installation depth of only 13 cm – particularly suitable for limited ceiling space
- Tab-Tension system – permanently perfect flatness without waves
- stable aluminum casing – torsion-resistant, durable, and cleanly integrated
- quiet tubular motor – smooth and quiet operation
- ideal for drywall and sophisticated living room installations
The combination of inconspicuous ceiling recess, low installation depth, and lateral fabric tension ensures an elegant overall solution with a permanently flat projection surface – crucial for high-quality 4K and 8K projection.
The result: A professional recessed screen with a perfect image surface and particularly low installation depth – ideal for modern home cinema and living room concepts.
Suitable for / Not recommended for / Alternative
Suitable for: standard-throw and long-throw, ambient light and higher-contrast HDR.
Not recommended for: UST / Laser TV; RGB triple-laser when speckle is disturbing.
Alternative: RGB triple-laser → HiViGrey Cinema 3L; UST → HiViPrism Cinema HDR CLR.
Care & cleaning
The screen surface is easy to maintain and can be cleaned when necessary. Dust can be removed with a soft duster or cloth. More persistent dirt or grease marks can be wiped carefully with a soft, damp cloth. If necessary, a mild, neutral cleaner can also be used.
Seamless one-piece projection surface
The projection fabric is made from one continuous piece of material. There are no joined, welded or sewn sections within the visible projection area, so there are no distracting seam or brightness lines. This keeps the image homogeneous and visually consistent across the entire surface.
Variants: Aspect Ratio and Warranty
Please select your variant:
- Aspect ratio 16:9 HD Widescreen or 21:9 Cinemascope
- Warranty: 2 years or 5 years (optional)
HiViLux - HighEnd AudioVideo Technology
For over 15 years, HiViLux has been developing premium audio and video products for the highest demands. German engineering for perfect home cinema experiences.
specification
x| Specification | |
|---|---|
| Screen material | HiViGrey Cinema 5D HDR |
| Gain | 1.1 |
| Viewing angle | 140° |
| Max. resolution | 8K |
| For projector | Long/Standard Throw · LCoS(SONY/JVC) · 3LCD · LED · DLP · Laser |
| Optimized for | ALR-Mikrostruktur + Beschichtung (Ambient Light Rejection) · Hochkontrast-Beschichtung |
| Acoustics | Nicht akustisch transparent |
| 3D playback | Yes |
| Black backing | Yes |
| Code | hivigrey5d |
| Short feature | HiViGrey Cinema 5D HDR/ALR+Kontrast grau |
| Housing | |
|---|---|
| Brand | HiViLux |
| Series | TID |
| Color | white |
| Material | ALU |
| Mounting | in ceiling |
| Remote control | RF radio |
| Optional | IR set · RF Switch-Trigger · 2-way control unit · Smart Home set |
| Short feature | Deckeneinbau Tension-Motorleinwand TID Serie |
Sample order
x
SAMPLE REQUEST
Feel the Difference – Request Screen Fabric Samples
Tell us your exact projector model, image size, viewing distance, room lighting and wall colours. We personally recommend suitable fabrics and explain both advantages and possible limitations.
Shipping: Sample requests shipped outside Germany cost €5, fully credited towards a later screen purchase. In Germany, the first sample request per customer is complimentary, including postage; further requests cost €5 and are also fully creditable. Shipped by Deutsche Post: usually 1–2 business days within Germany, 2–3 abroad after dispatch (non-binding estimates). Samples do not need to be returned.
- Professional fabric advice, including possible disadvantages
- Deutsche Post delivery; keep the samples
- No obligation to purchase
Installation
xManual / Instructions
Here you can find the PDF user manual for your product.
Individually
x
CUSTOM DESIGN
Your Screen – as Unique as Your Home Theater
Do you have specific requirements for size, shape, screen fabric, or frame accents? We will craft your screen exactly to your specifications – so it fits your room perfectly.
- Custom sizes & formats
- Wide selection of fabrics & frame colors
- Consultation & visualization before production
