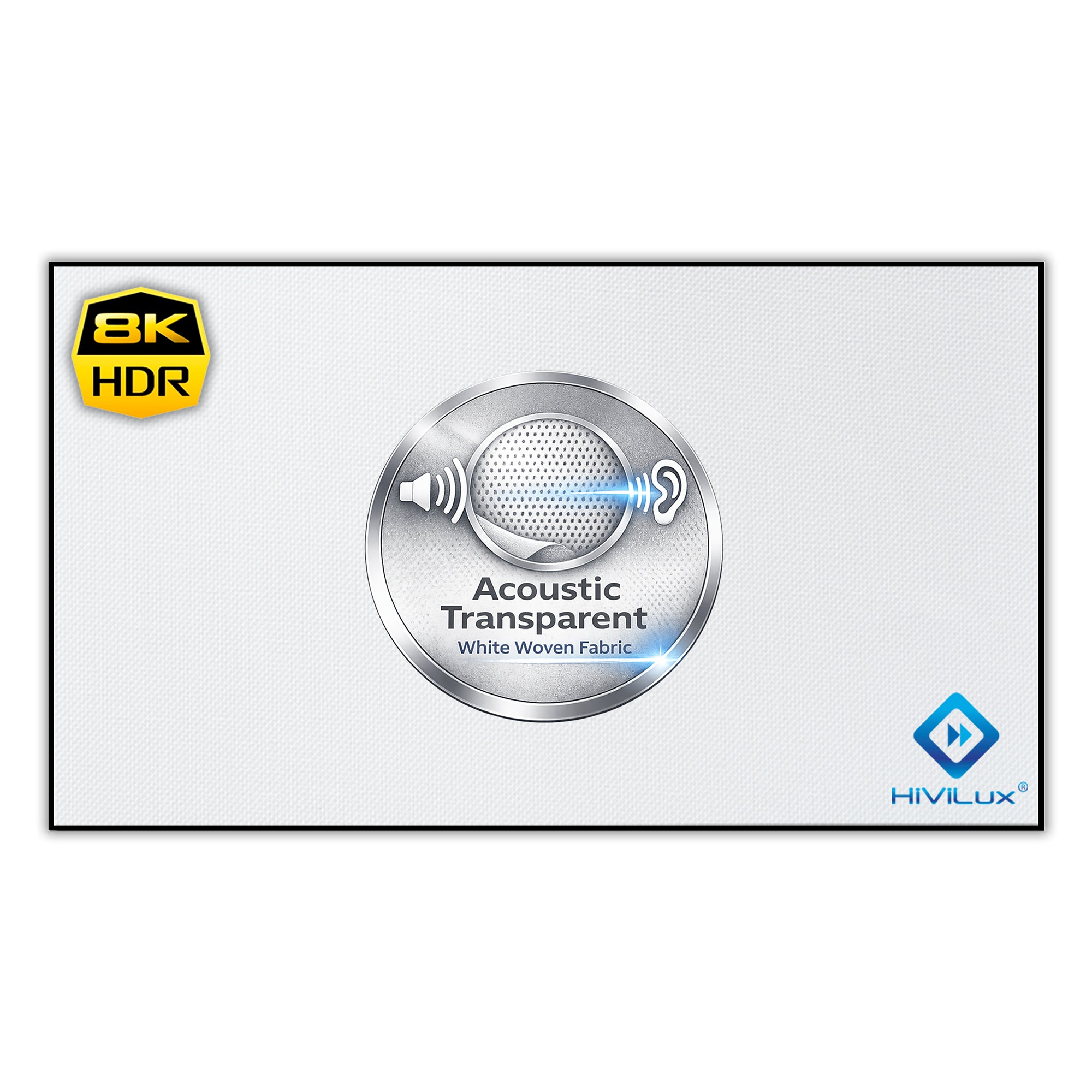

HiViLux Zero-frame screen with HiViWhite Cinema SD acoustically transparent fabric in 16:9

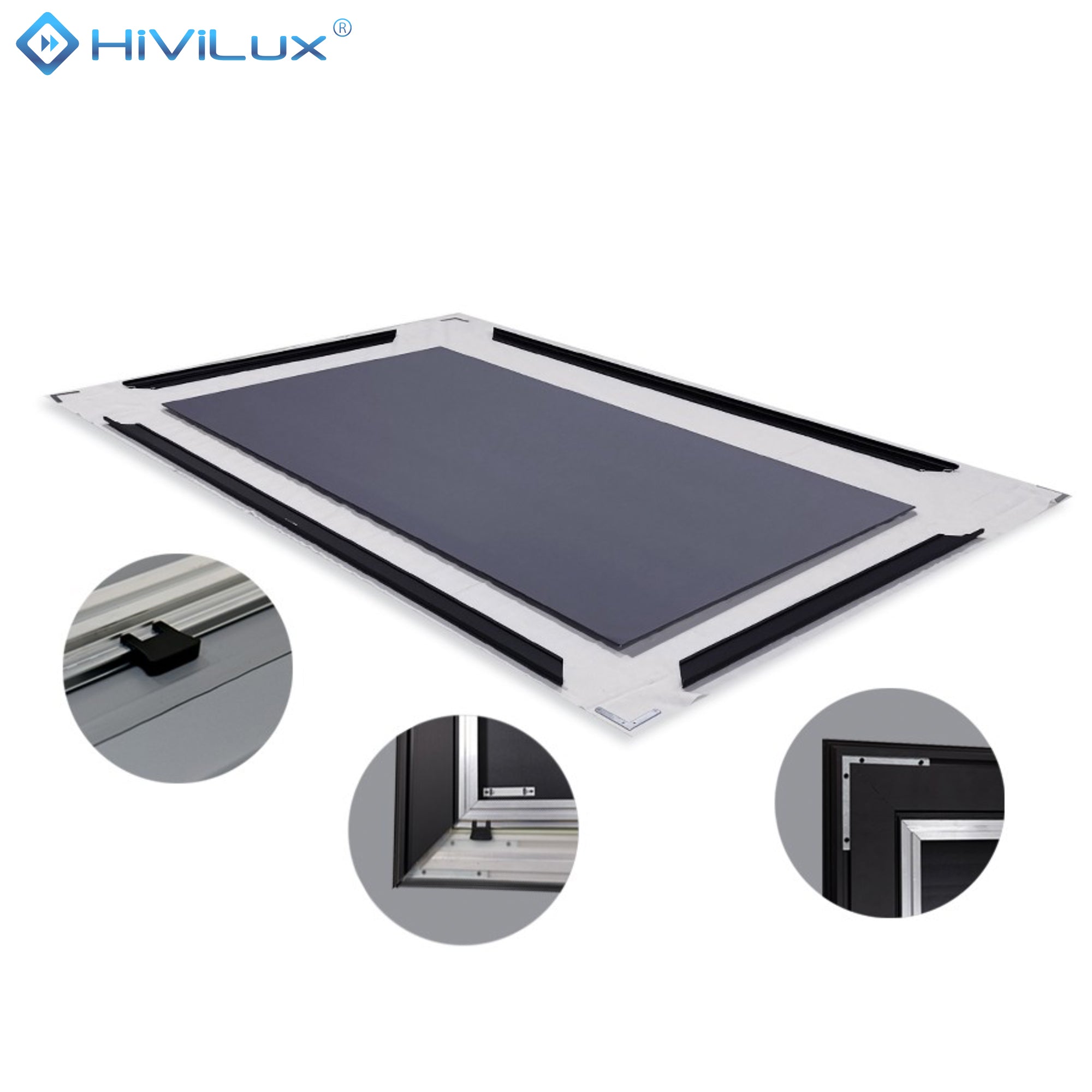

Frame components and mounting hardware for the HiViLux 7 mm Zero-bezel fixed-frame screen

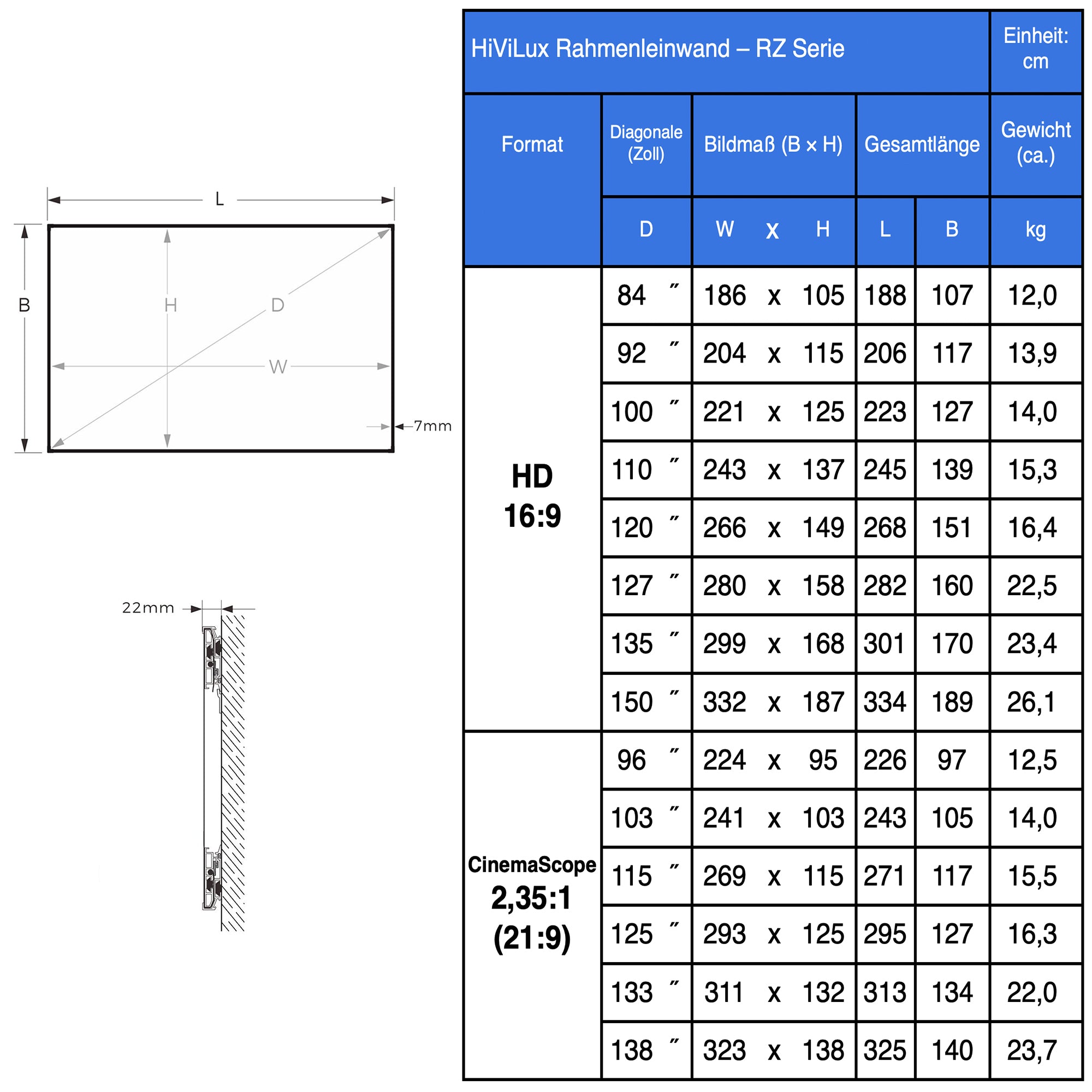

Technical specifications for the HiViLux 7 mm Zero-bezel fixed-frame screen

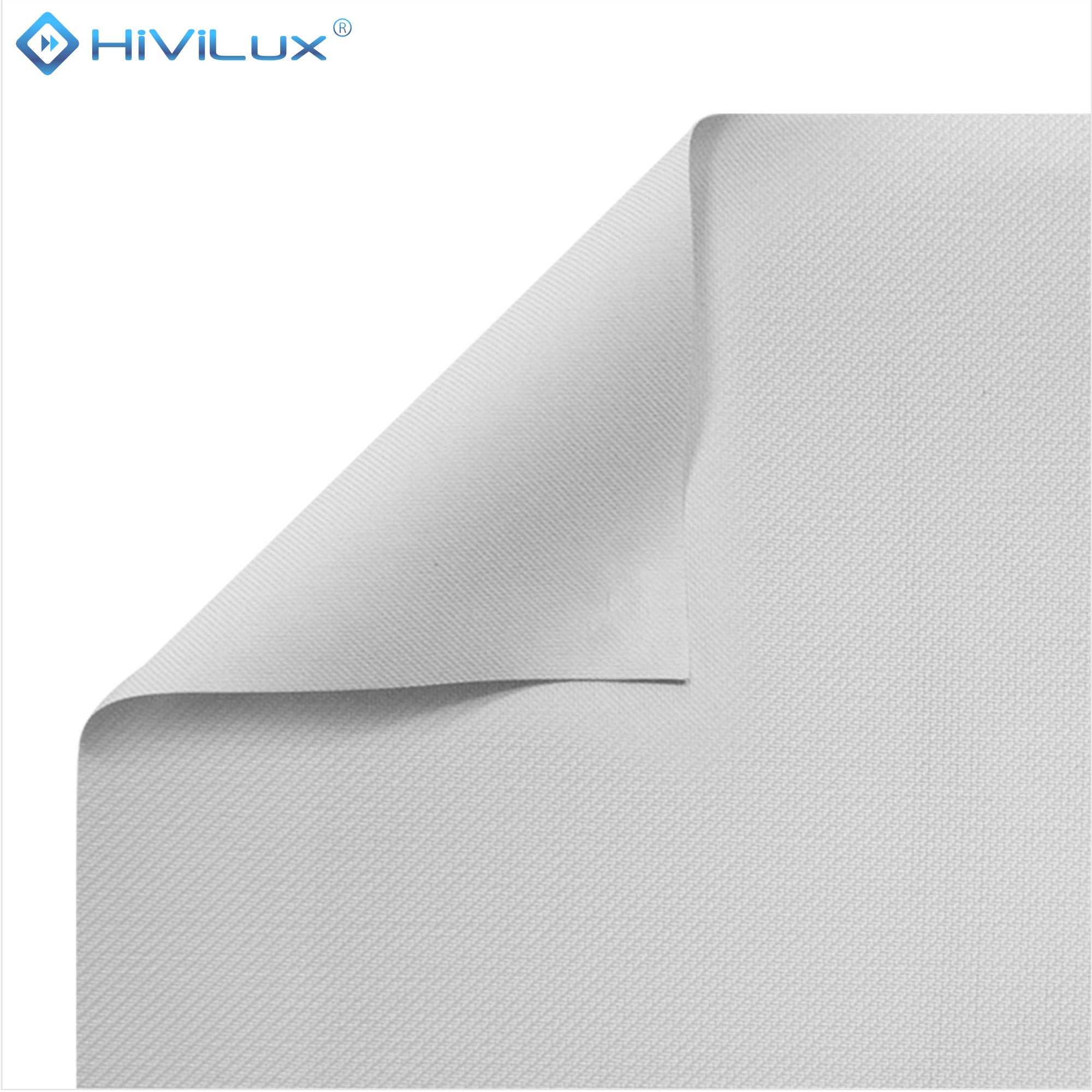

Close-up of the woven HiViWhite Cinema SD acoustically transparent projection fabric

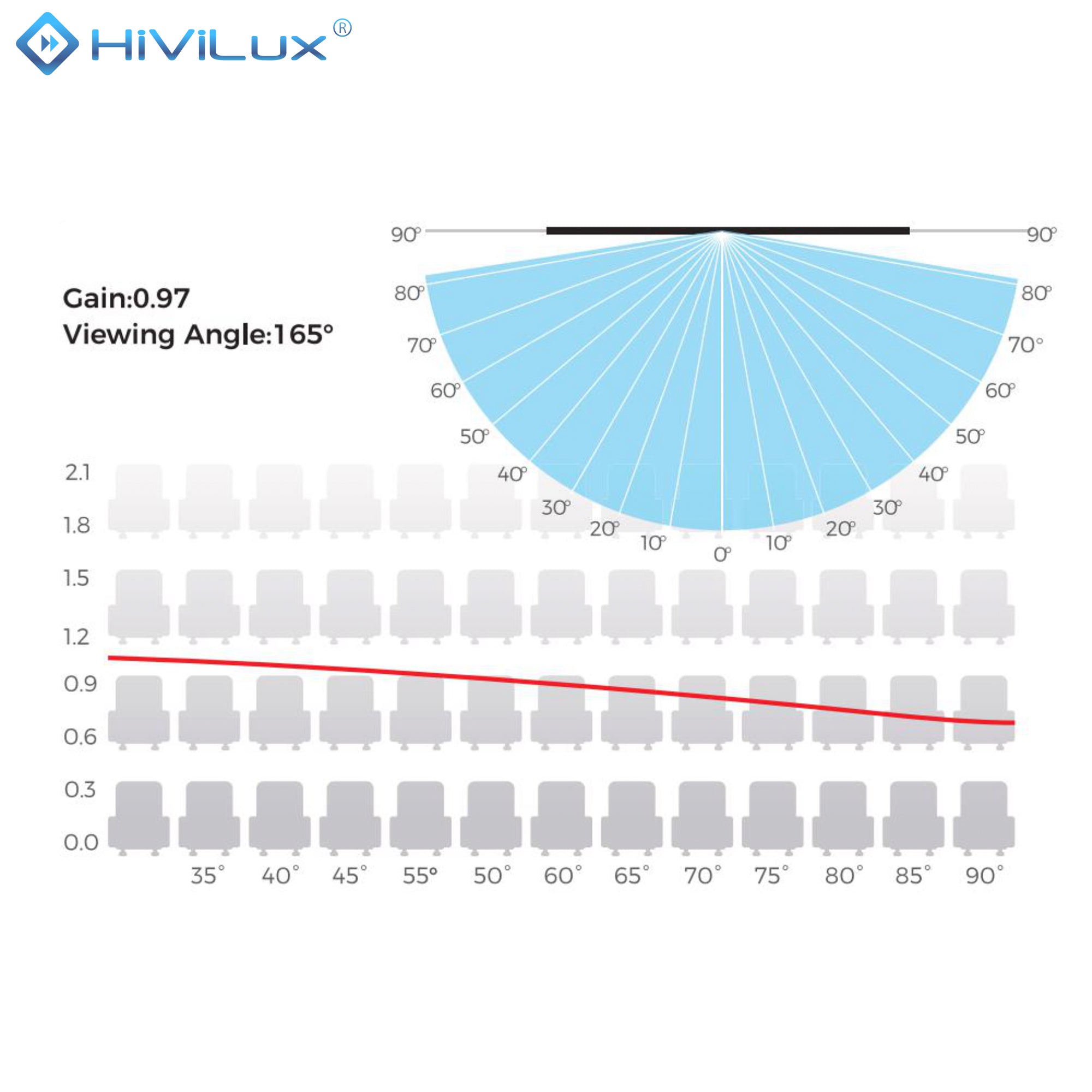

Gain and viewing angle of the HiViWhite Cinema SD projection fabric

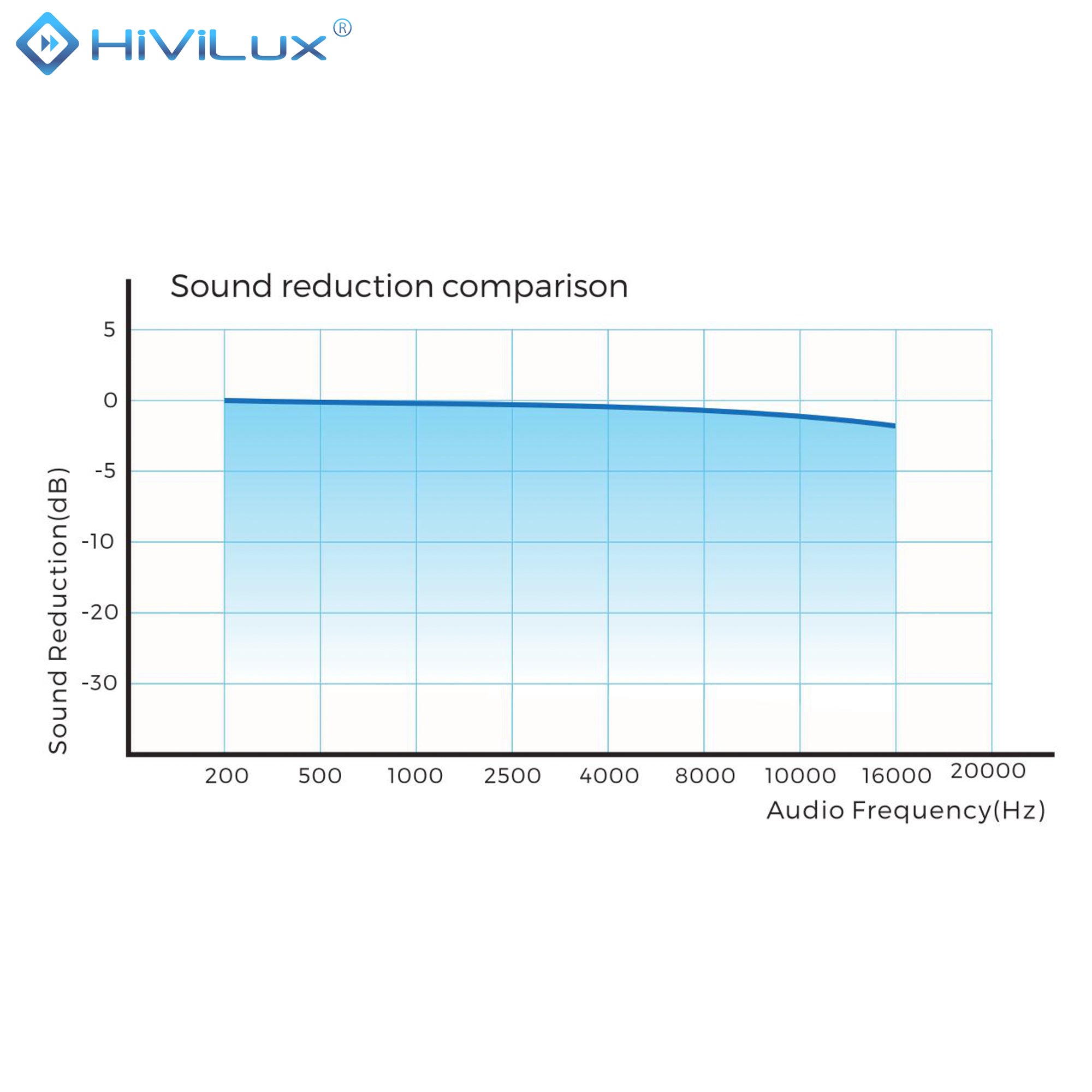

Sound transparency and attenuation of the HiViWhite Cinema SD acoustically transparent projection fabric

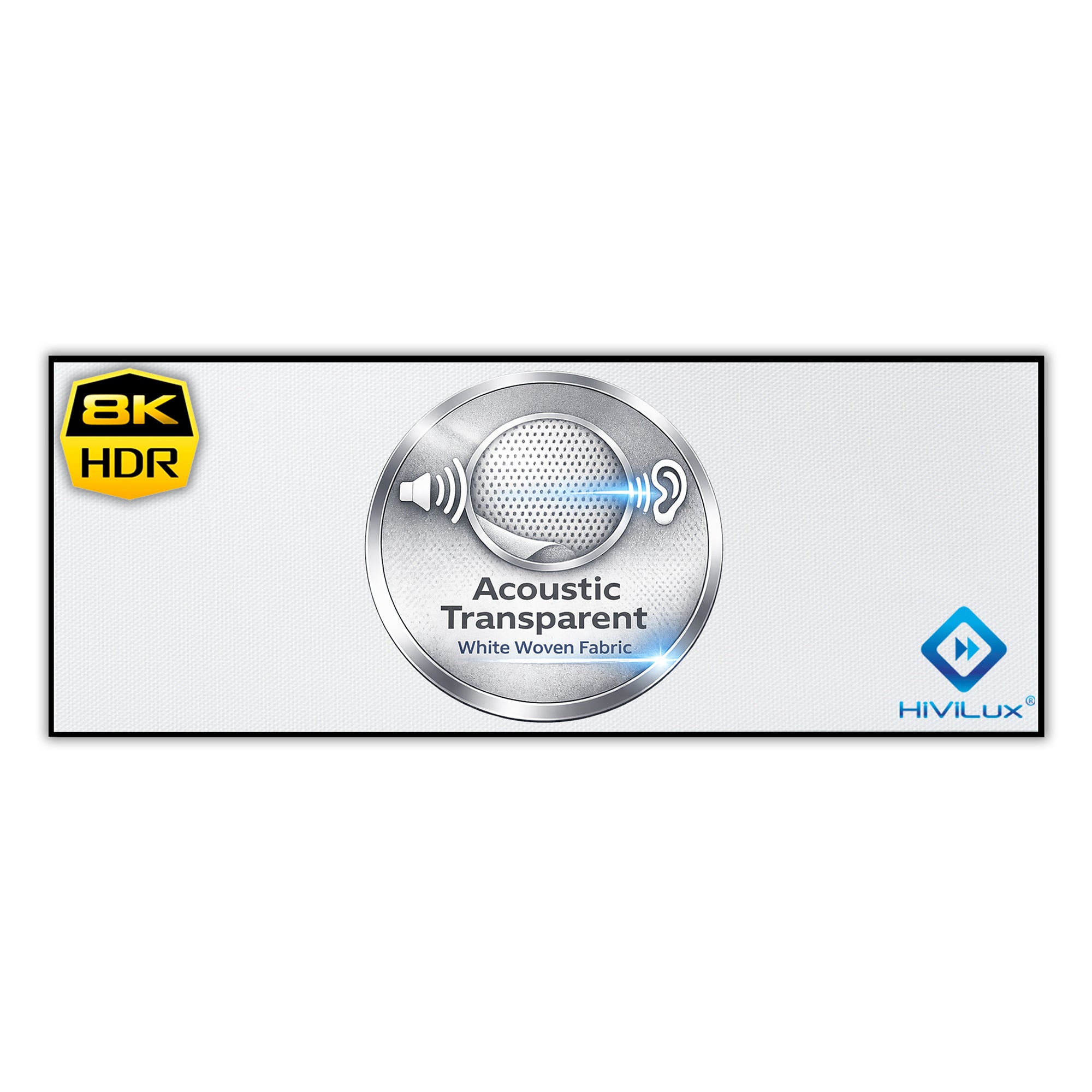

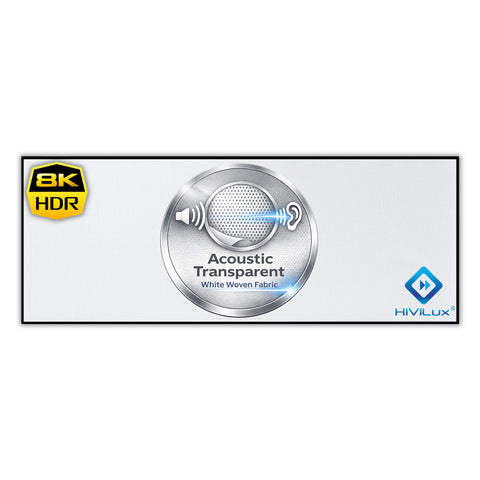

HiViLux Zero-frame projection screen with HiViWhite Cinema SD acoustically transparent fabric, 21:9 aspect ratio

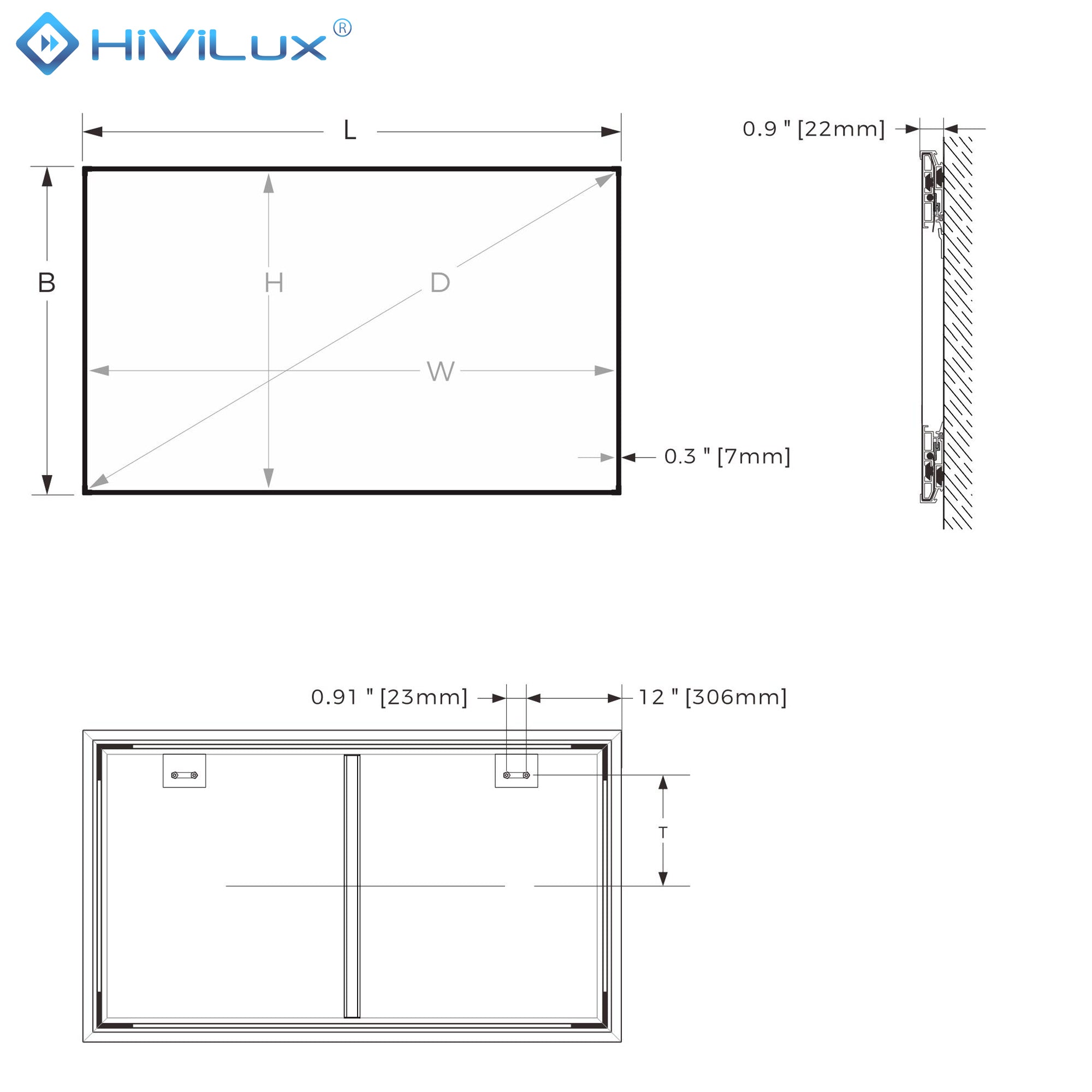

Assembly of the HiViLux 7 mm Zero-bezel fixed-frame screen
Recommended screen size and viewing distance for home cinema
HiViLux Zero-frame screen with HiViWhite Cinema SD acoustically transparent fabric in 16:9
Frame components and mounting hardware for the HiViLux 7 mm Zero-bezel fixed-frame screen
Technical specifications for the HiViLux 7 mm Zero-bezel fixed-frame screen
Close-up of the woven HiViWhite Cinema SD acoustically transparent projection fabric
Gain and viewing angle of the HiViWhite Cinema SD projection fabric
Sound transparency and attenuation of the HiViWhite Cinema SD acoustically transparent projection fabric
HiViLux Zero-frame projection screen with HiViWhite Cinema SD acoustically transparent fabric, 21:9 aspect ratio
Assembly of the HiViLux 7 mm Zero-bezel fixed-frame screen
Recommended screen size and viewing distance for home cinema

HiViLux® Acoustic Zero-Frame Screen – HiViWhite Cinema SD

€649,00
€649,00

🕒 Delivery time: Please select a variant

Aspect ratio: 16:9 HD Widescreen
Size (Diagonal Inches): 84"
Subtotal: €649,00
Ask an expert
HiViLux Zero-frame screen with HiViWhite Cinema SD acoustically transparent fabric in 16:9

HiViLux® Acoustic Zero-Frame Screen – HiViWhite Cinema SD

€649,00
HiViLux Zero-frame screen with HiViWhite Cinema SD acoustically transparent fabric in 16:9
Frame components and mounting hardware for the HiViLux 7 mm Zero-bezel fixed-frame screen
Technical specifications for the HiViLux 7 mm Zero-bezel fixed-frame screen
Close-up of the woven HiViWhite Cinema SD acoustically transparent projection fabric
Gain and viewing angle of the HiViWhite Cinema SD projection fabric
Sound transparency and attenuation of the HiViWhite Cinema SD acoustically transparent projection fabric
HiViLux Zero-frame projection screen with HiViWhite Cinema SD acoustically transparent fabric, 21:9 aspect ratio
Assembly of the HiViLux 7 mm Zero-bezel fixed-frame screen
Recommended screen size and viewing distance for home cinema

HiViLux® Acoustic Zero-Frame Screen – HiViWhite Cinema SD

€649,00
Aspect ratio: 16:9 HD Widescreen
Size (Diagonal Inches): 84"
Description
Description
x

HiViWhite Cinema SD – white anti-speckle fabric for RGB triple-laser, maximum brightness and natural image reproduction

Especially with modern RGB triple-laser projectors, HiViWhite Cinema SD combines very good reduction of visible laser speckle with high light output. Its white woven base with Gain 0.97 preserves image brightness particularly well and supports natural, colour-neutral reproduction – ideal when maximum brightness is more important than the additional black-level enhancement of a grey fabric.

The neutral white base of the material offers clear advantages:
  • balanced brightness with natural light reflection (Gain 0.97)
  • color-accurate display without visible color shift
  • high detail clarity and clean image structure
  • even illumination without hotspot effect
  • 3D Compatible: Suitable for active 3D projection with compatible projectors and shutter glasses.
The result: A high-quality white screen with Gain 0.97 – for natural colors, even image distribution, and an authentic home cinema experience.

7 mm Zero Frame – Maximum Image Area, Minimum Visibility

Technical features of the frame:

  • High-quality aluminum profile frame – stable and warp-free
  • Precise tensioning of the fabric for permanently perfect flatness
  • Ultra-narrow visible edge (7 mm) for "Zero Frame" look
  • Wall mounting with adjustable brackets for exact alignment
  • Quick and easy installation

Transport-friendly frame construction

The long frame sides are split into two sections for easy and safe transport. Depending on the model, the package length is therefore usually only approx. 1.5–2.0 m, so the screen can also be transported in many passenger cars.

The projection fabric is supplied safely rolled on a sturdy large-diameter cardboard tube. It is not folded, preventing permanent creases and kink marks.

Care & cleaning

The screen surface is easy to maintain and can be cleaned when necessary. Dust can be removed with a soft duster or cloth. More persistent dirt or grease marks can be wiped carefully with a soft, damp cloth. If necessary, a mild, neutral cleaner can also be used.

Seamless one-piece projection surface

The projection fabric is made from one continuous piece of material. There are no joined, welded or sewn sections within the visible projection area, so there are no distracting seam or brightness lines. This keeps the image homogeneous and visually consistent across the entire surface.

Suitable for / Not recommended for / Alternative

Suitable for: acoustically transparent installations, standard-throw and long-throw and good light control.

UST / Laser TV: HiViWhite Cinema SD can also be used with UST projection. For maximum CLR performance and black levels, we recommend HiViPrism Cinema HDR CLR.

Not recommended for: strong ambient light when an ALR screen is required.

Alternative: for more contrast with acoustic transparency → HiViGrey Cinema 5DMP.

Variants: Aspect Ratio and Warranty

Please select your variant:

  • Aspect ratio 16:9 HD Widescreen or 21:9 Cinemascope
  • Warranty: 2 years or 5 years (optional)
  • Black gauze background (optional)

HiViLux - HighEnd AudioVideo Technology

For over 15 years, HiViLux has been developing premium audio and video products for the highest demands. German engineering for perfect home cinema experiences.

specification
specification
x
Specification
Screen materialHiViWhite Cinema SD
Gain0.97
Viewing angle165°
Max. resolution8K
For projectorLong/Standard Throw · UST · DLP · Triple-Laser(RGB) · LCoS(SONY/JVC) · Laser · 3LCD · LED
Optimized forGewebt akustisch transparent (AT) · RGB-/Triple-Laser Anti-Speckle
AcousticsAkustisch transparent (AT): gewebt
3D playbackYes
Black backingNo
Codehiviwhitesd
Short featureHiViWhite Cinema SD/Gewebe Akustik
Frame
BrandHiViLux
SeriesRZ
MaterialALU
ProfileZero 7mm
MountingWand
OptionalGaze-Hintergrund zur Reduzierung von Streulicht von hinten (bei Akustikstoff)
Short featureRahmenlos (Zero Frame)
Sample order
Sample order
x
SAMPLE REQUEST

Feel the Difference – Request Screen Fabric Samples

Tell us your exact projector model, image size, viewing distance, room lighting and wall colours. We personally recommend suitable fabrics and explain both advantages and possible limitations.

Shipping: Sample requests shipped outside Germany cost €5, fully credited towards a later screen purchase. In Germany, the first sample request per customer is complimentary, including postage; further requests cost €5 and are also fully creditable. Shipped by Deutsche Post: usually 1–2 business days within Germany, 2–3 abroad after dispatch (non-binding estimates). Samples do not need to be returned.

  • Professional fabric advice, including possible disadvantages
  • Deutsche Post delivery; keep the samples
  • No obligation to purchase
Sample service: €5 outside Germany, fully credited towards a later screen purchase. First request in Germany complimentary once per customer.

Your information will only be used to process your sample request. Further information can be found in our Privacy Policy .

Close-up of an original projection screen fabric sample
Installation
Installation
x

Manual / Instructions

Here you can find the PDF user manual for your product.

Manual (PDF)
Individually
Individually
x
CUSTOM DESIGN

Your Screen – as Unique as Your Home Theater

Do you have specific requirements for size, shape, screen fabric, or frame accents? We will craft your screen exactly to your specifications – so it fits your room perfectly.

  • Custom sizes & formats
  • Wide selection of fabrics & frame colors
  • Consultation & visualization before production
We will get back to you within 1–2 business days with an offer.
